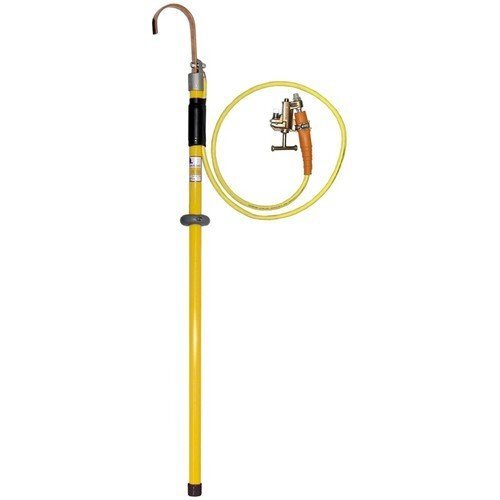

Product Name: Insulating Stick with Discharge Resistor
Model: PTS38
Standard: IEC 60855-1

Test Procedures:

1. Visual Inspection: The insulating stick with discharge resistor was visually inspected for any visible defects, irregularities, or damage in material and construction.

2. Dielectric Strength Test: The insulating stick was tested for its dielectric strength to ensure its ability to withstand electrical stress without failure. The stick was subjected to a high voltage to assess its insulation properties.

3. Discharge Resistor Test: The discharge resistor was tested to evaluate its functionality in safely dissipating residual electrical charges. The resistor's dimensions were measured to ensure compliance with specifications.

4. Weight Measurement: The weight of the discharge resistor was measured to verify its conformity with the provided specifications.

Test Results:

1. Visual Inspection: The insulating stick and discharge resistor showed no visible defects, irregularities, or damage. Both components appeared to be well-constructed and free from any visible flaws.

2. Dielectric Strength Test: The insulating stick successfully withstood the applied high voltage without exhibiting any signs of breakdown or failure. It demonstrated satisfactory dielectric strength, meeting the requirements of IEC 60855-1.

3. Discharge Resistor Test: The discharge resistor was found to be present and installed correctly within the insulating stick. Its dimensions were measured to be 330 x 51 x 51 mm, conforming to the specified requirements.

4. Weight Measurement: The weight of the discharge resistor was measured to be 500 g, in accordance with the provided specifications.

Conclusion:

Based on the conducted tests, the Insulating Stick with Discharge Resistor (Model: PTS38) complies with the requirements specified in IEC 60855-1. The product exhibits satisfactory dielectric strength, and the discharge resistor functions effectively in dissipating residual electrical charges. The dimensions and weight of the discharge resistor meet the provided specifications, ensuring its suitability for safe use in electrical applications.
