Breathing Air Filling Machine – High-Pressure Compressor for SCUBA & SCBA Cylinders

Milan Safety’s Breathing Air Filling Machine is a powerful and reliable high-pressure air compressor designed for refilling SCUBA and SCBA breathing cylinders. Unlike standard compressors that can only deliver up to 10 Bar, our models offer a maximum pressure of 300 Bar (30MPa)—ensuring safe, clean, and efficient refills of breathable air, not pure oxygen.

Whether you're operating in emergency services, diving operations, or industrial safety environments, our compressors deliver purified, high-pressure compressed air with compact designs for easy portability and robust performance.

✅ Key Features:

• High outlet pressure up to 30MPa (300 Bar)

• Integrated oil-water separator for removing moisture and impurities

• Compact skid-mounted design for portability

• G5/8 outlet for SCBA/SCUBA compatibility

• Optional automatic shutdown feature for added safety



  📦 Available Models & Specifications

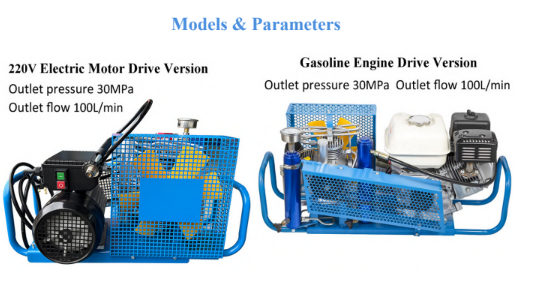

  🔹 BFM-A – Portable 220V Motor Drive

  • Power: 2.2KW | Noise: <78dB

  • Speed: 2300 RPM | Max Flow: 100L/min

  • Weight: 45KG | Size: 68x37x40cm

  • ➕ Add automatic shutdown: +$200

  ---

  🔹 BFM-B – Gasoline Engine (Honda) Drive

  • Power: 4KW | Engine: 300CC

  • Fuel Tank: 7L | Speed: 2800 RPM

  • Noise: <80dB | Max Flow: 100L/min

  • Weight: 45KG | Size: 76x32x40cm

  • ➕ Add automatic shutdown: +$200

  ---

  🔹 BFM-C – 380V Motor Drive | Dual Outlet | Auto Shutdown

  • Power: 4KW | Speed: 1400 RPM

  • Max Flow: 200L/min | Noise: <78dB

  • Weight: 150KG | Size: 97x55x62cm

  ---

  🔹 BFM-D – 380V Motor Drive | Dual Outlet | Auto Shutdown

  • Power: 7.5KW | Speed: 1400 RPM

  • Max Flow: 300L/min | Noise: <78dB

  • Weight: 185KG | Size: 110x60x70cm

  ---

  Applications:
  Fire departments, diving centers, rescue operations, hazardous work zones, and industrial sites.

  Note: These machines are for filling purified air, not pure oxygen. Always use with compatible breathing cylinders (SCBA/SCUBA).
