Please note delivery time will be minimum 30 days for this product

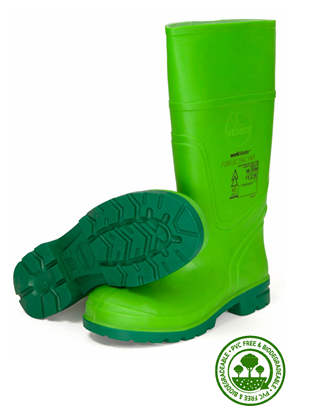

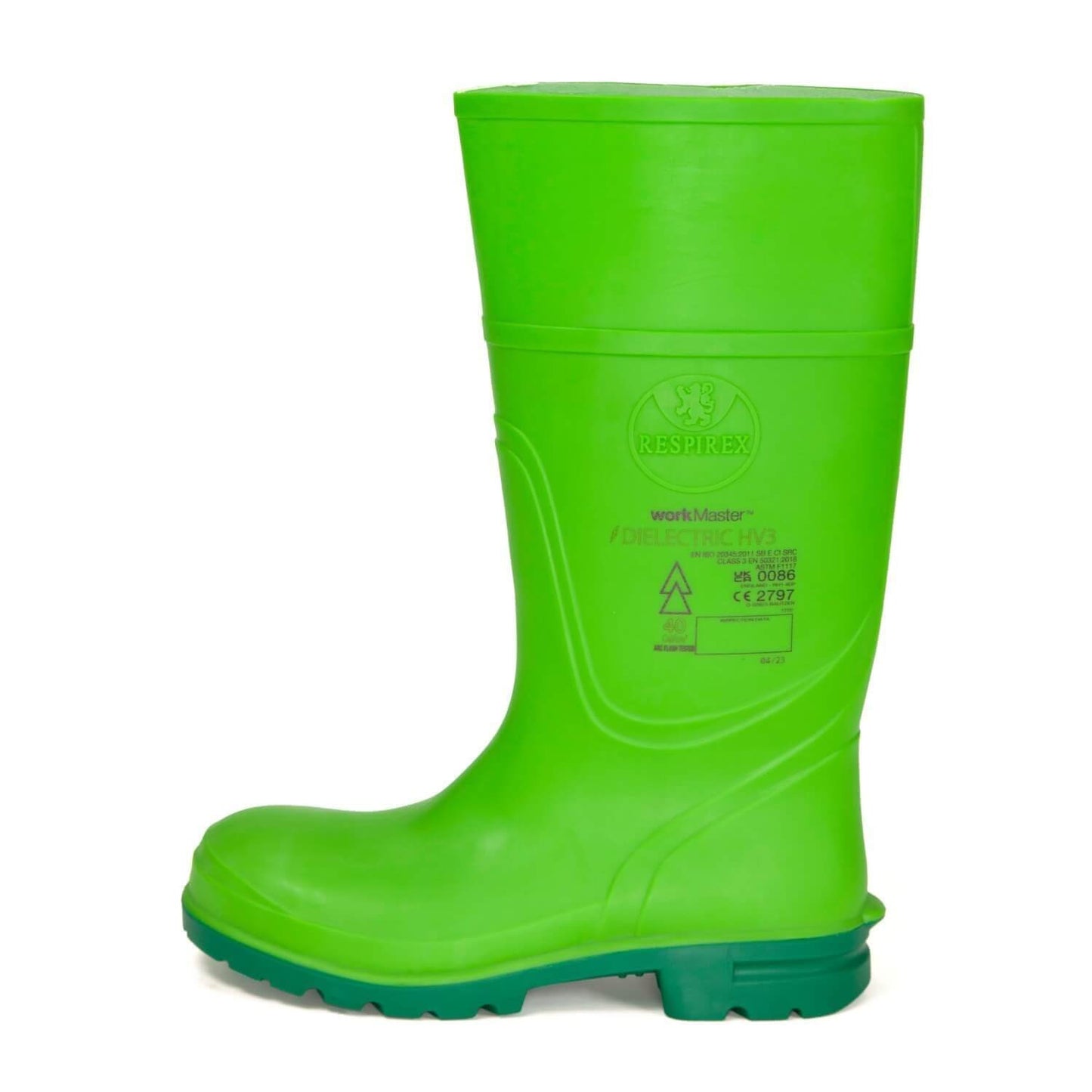

DIELECTRIC HV3 SAFETY BOOTS

CLASS 3 ELECTRICALLY INSULATING FOOTWEAR

The Dielectric HV3 Safety Boot is engineered to provide exceptional protection during high-voltage live working, meeting the stringent requirements of EN 50321-1:2018 Class 3 for electrical insulation up to 35kV step voltage and live working up to 26.5kV. Each boot undergoes rigorous testing at 30kV to ensure unmatched safety and reliability. With its lightweight design, superior insulation, and advanced materials, this boot is ideal for professionals in power generation, distribution, construction, telecommunications, and transport sectors.

Features:

• High Voltage Protection:

  • Tested for 30kV AC leakage current (<20mA over a 3-minute test cycle).
  • Step voltage protection up to 35kV.
  • Arc Flash Protection – Meets ASTM F2621-2019 at 40Cal/cm².

• Durable Construction:

  • Injection-molded using proprietary HV3 compound for seamless construction and superior electrical insulation.
  • Integrated 200 Joule epoxy-coated steel toe cap for enhanced protection.

• Comfort & Flexibility:

  • Lightweight design to reduce wearer fatigue.
  • Superb low-temperature flexibility down to -40°C.
  • Ergonomic cushioned insole, removable and machine washable.

• Safety & Performance:

  • Slip-resistant, cleated outsole for maximum grip.
  • Energy-absorbing heel system in compliance with EN 20345:2011 E.
  • Environmentally friendly construction – PVC and halogen-free, phthalate-free material.
  • Biodegradable material ensures eco-friendliness.

• Additional Features:

  • Non-wicking knitted nylon lining.
  • Kick-off lug for easy removal.
  • Adjustable height for user comfort.
  • CE marking on the shaft with the date and year of manufacture.
  • REACH Compliant – Ensuring adherence to EU safety standards.

Care Instructions:

• Machine washable at temperatures up to 40°C.
• Five-year shelf life.

Options Available:

• Additional High Voltage DC Test option.
• Removable thermal liner for added warmth in cold environments.

Certifications:

• EN ISO 20345:2011 SB E SRC (Safety Footwear).
• EN 50321-1:2018 Class 3 AC (Electrically Insulating Footwear).
• PPE Regulation (EU) 2016/425 (Personal Protective Equipment).
• Conforms to ASTM F1117 standards.

Size Availability:

• UK Sizes: 4 to 15
• EU Sizes: 36 to 50
• US Sizes: 5 to 16

The Dielectric HV3 Safety Boot combines innovation, safety, and sustainability to deliver reliable performance in demanding environments. Choose it for unmatched protection and comfort.
