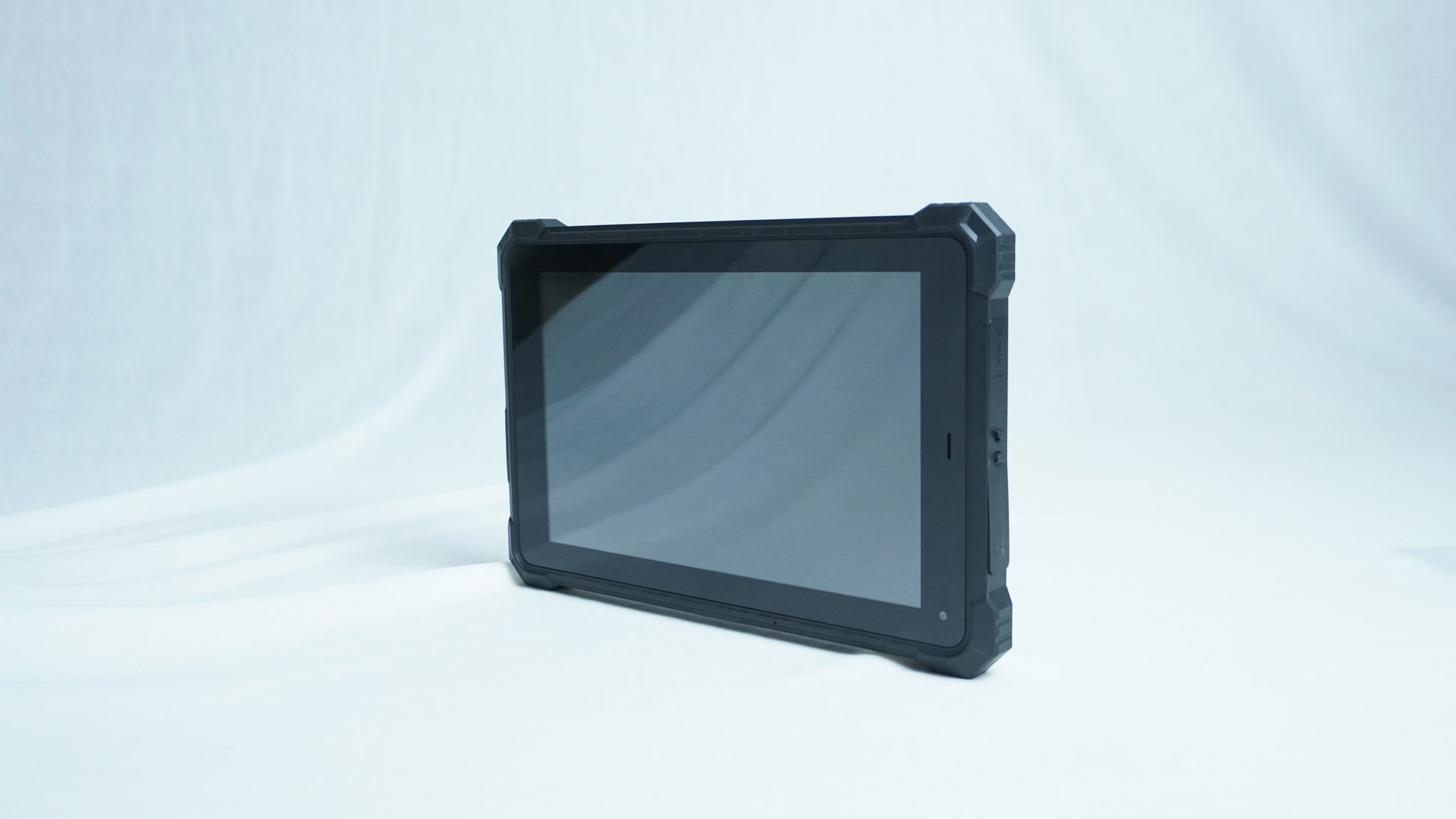

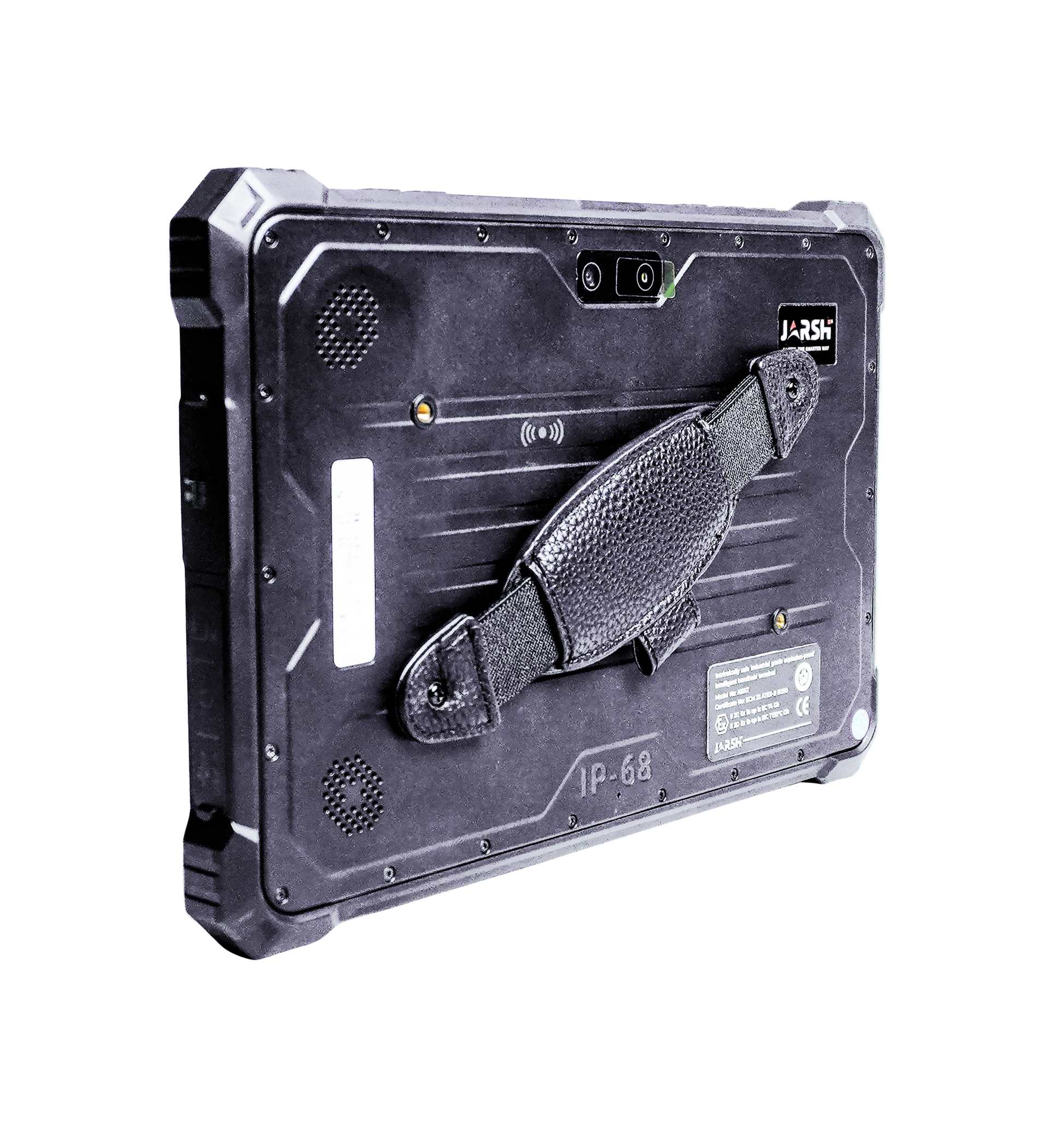

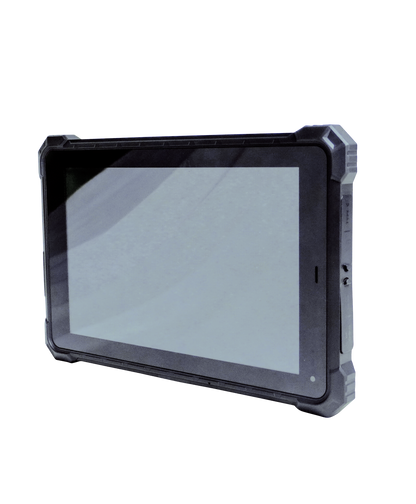

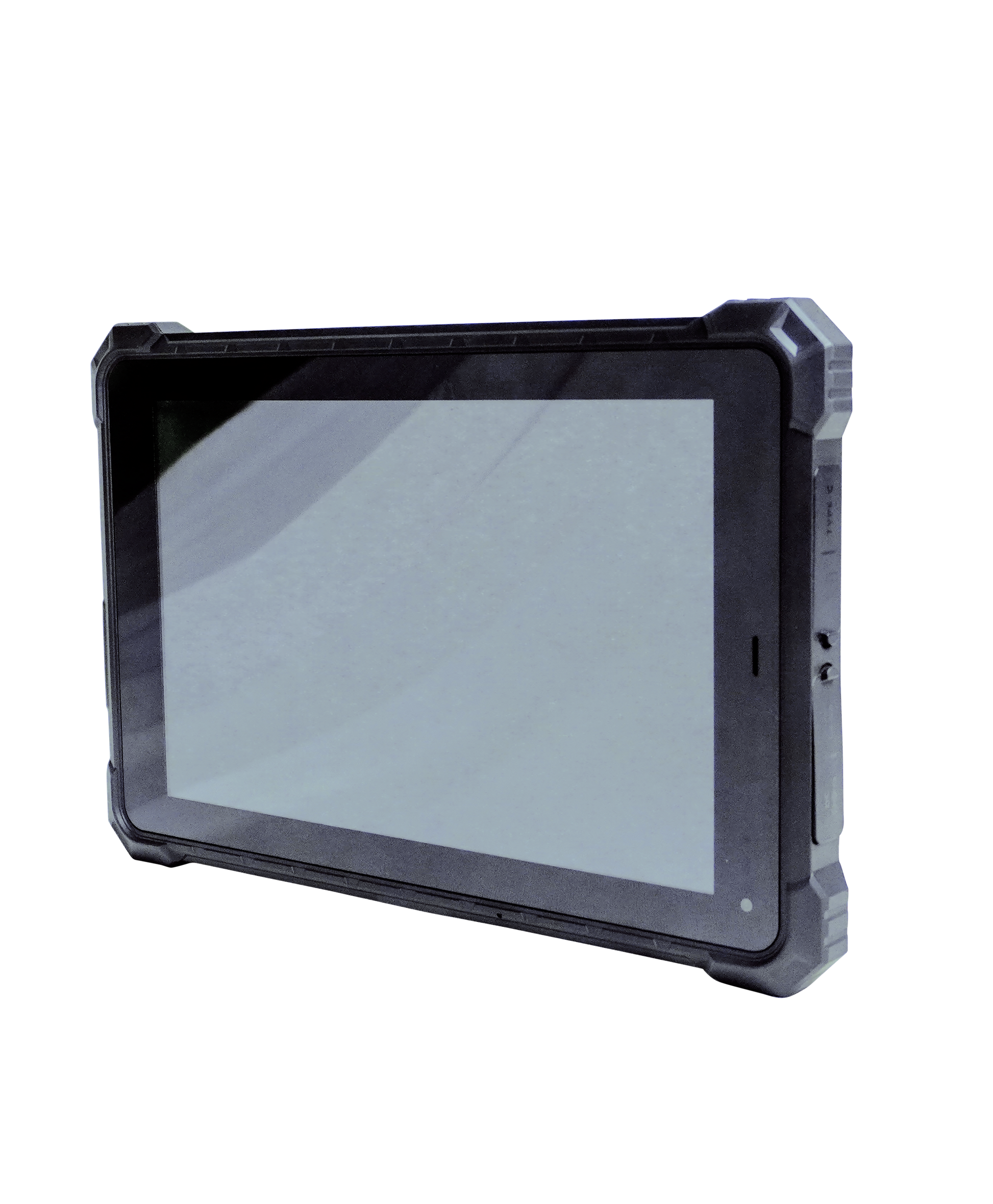

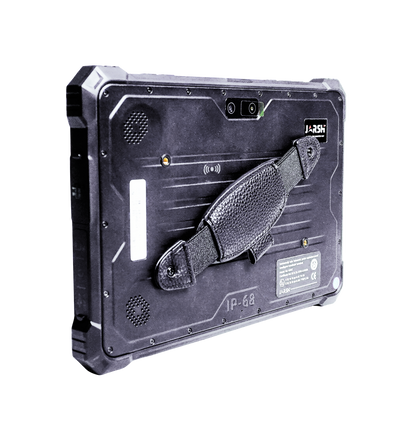

The Jarsh JAS Tab 1 (Model: JAS-T-ATEX-4G) is an elite, ultra-rugged Android 13 tablet engineered exclusively for complex field operations and volatile industrial environments. Purpose-built to maintain high performance in hazardous locations, the device features a resilient, high-strength industrial plastic housing reinforced with a heavy-duty metal interior frame. It supports specialized, optional explosion-proof configurations compliant with international ATEX standards—carrying critical protection ratings such as CE 0589 II 2G Ex ib IIC T4 Gb, II 2D Ex ib IIIC T135°C Db, and I M2 Ex ib I Mb.

Equipped with a powerful MediaTek MT8781 Octa-Core processor and a massive 10,000mAh high-capacity battery, the JAS Tab 1 provides full-shift reliability for frontline workers. The tablet features a 10.1-inch FHD highlight capacitive touchscreen with advanced glove and wet touch support to ensure flawless operation under extreme conditions. This robust device acts as an intrinsically safe mobile workstation, allowing field engineers to securely gather data, track logistics, and handle enterprise communications directly within coal safety environments, mining sites, petrochemical processing plants, and other hazardous zones.

Key Features

• Intrinsically Safe ATEX Certifications: Fully certified for hazardous zones with ratings including CE 0589 II 2G Ex ib IIC T4 Gb, II 2D Ex ib IIIC T135°C Db, and I M2 Ex ib I Mb.

• Ultra-Rugged Durability: Built to survive demanding industrial fields with dual IP68 and IP69K waterproof/dustproof ratings alongside stringent MIL-STD-810G military standard compliance.

• Industrial Grade Display: High-definition 10.1-inch FHD ($1920 \times 1200$) highlight capacitive touchscreen tailored with essential glove and wet touch software support.

• High-Capacity Battery: Outfitted with a massive 10,000mAh battery cell supporting wireless charging and dedicated DC port inputs for versatile field replenishment.

• Extreme Environmental Tolerance: Engineered to operate reliably in harsh microclimates with a wide operating temperature range from -20°C up to +60°C and non-condensing humidity tolerances from 5% to 95%.

• Tactile Safety Controls: Physical PTT (Push-to-Talk) and SOS hardware keys provide remote frontline operators with rapid emergency signaling capabilities.

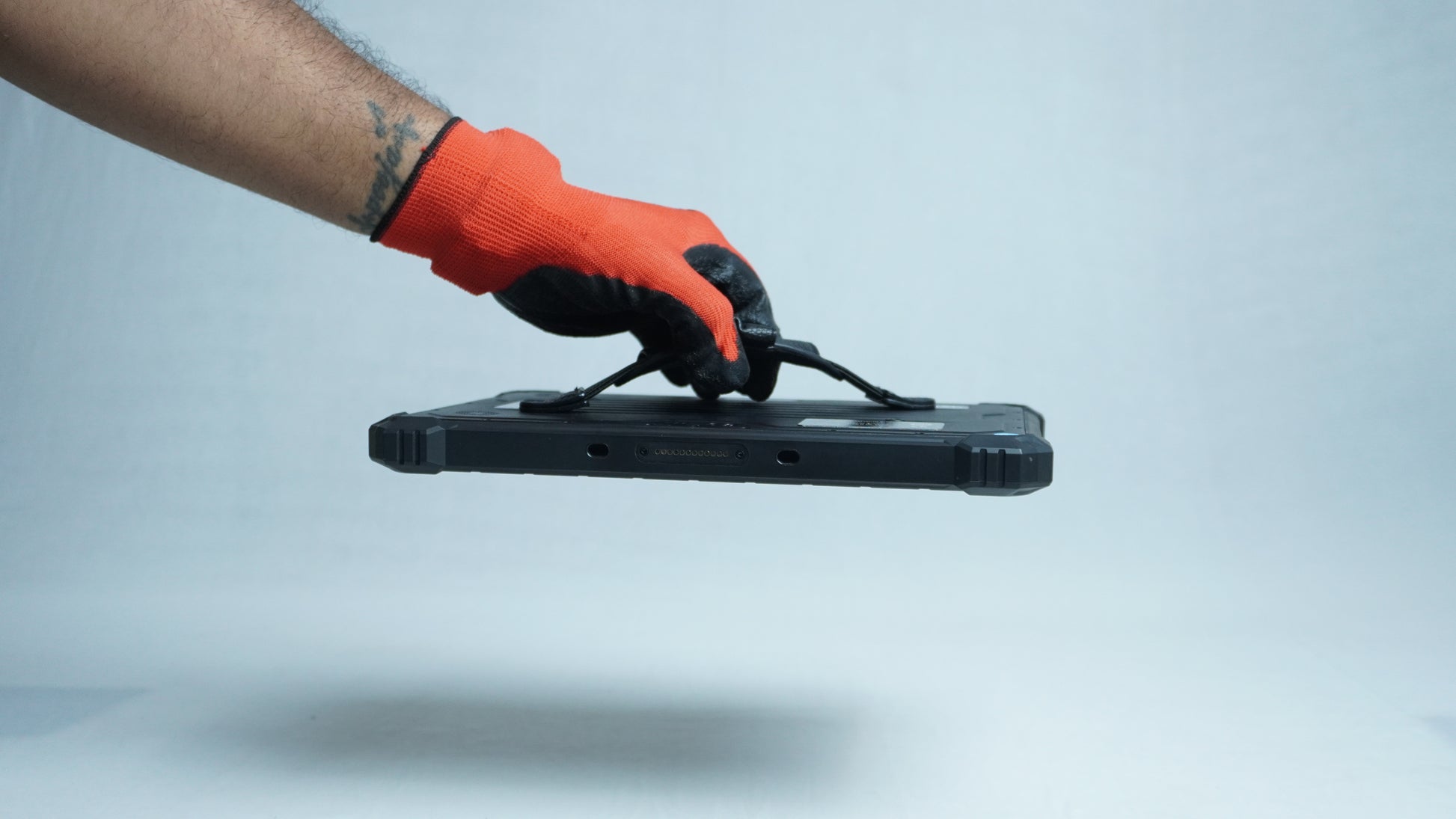

• Heavy-Duty Chassis Construction: Manufactured using high-strength industrial plastics paired with a rugged metal frame layout to absorb high-impact mechanical stress.

Technical Specifications

Physical & Material Specifications

• Model Number: JAS-T-ATEX-4G

• Product Name Variant: JAS Tab 1 (AtEx Tablet)

• Dimensions: 270 mm × 180 mm × 17.5 mm

• Weight: 1000g (measured without external DMR antenna)

• Enclosure Material: High-strength industrial plastic with integrated metal frame

• Color Available: Industrial Black

Durability & Hazardous Zone Certifications

• Ingress Protection Level: IP68 / IP69K (Waterproof, Dustproof)

• Military Testing Standard: MIL-STD-810G Compliant

• Explosion-Proof Ratings:

  • CE 0589 II 2G Ex ib IIC T4 Gb

  • II 2D Ex ib IIIC T135°C Db

  • I M2 Ex ib I Mb

Display Properties

• Screen Size: 10.1 inches

• Resolution: 1920 × 1200 pixels (FHD)

• Touch Type: Highlight Capacitive Touchscreen

• Operational Multi-Touch Support: Glove & Wet Touch Support

Performance & Memory Architecture

• Operating System: Android 13 Enterprise Edition

• Processor (CPU): MediaTek MT8781 Octa-Core Platform

• Graphics Unit (GPU): ARM Mali-G57 MC2

• RAM System Options: 8GB / 12GB

• ROM Storage Options: 128GB / 256GB

• External Storage Expansion: Up to 512GB via dedicated Micro SD Slot

Integrated Camera System

• Rear Camera Sensor: 20MP High Resolution

• Front Camera Sensor: 8MP

Battery & Power Architecture

• Battery Capacity: 10,000mAh Heavy-Duty Cell

• Charging Interface Ports: DC Port

• Wireless Charging Input: Supported

Connectivity & Network Bands

• Cellular Data Support: 5G / 4G LTE / 3G / 2G Network Standards

• Wi-Fi Connectivity: Dual Band 2.4GHz / 5GHz Adaptive Adapter

• Bluetooth Smart Module: Version 5.0

• Satellite Positioning: Built-in GPS

• SIM Slot Layout: Dual Nano SIM Tray Architecture

Interfaces & Hardware Expansion

• USB Data Port: USB Type-C Port

• Audio Connectivity: 3.5mm Audio Jack

• Memory Expansion Slot: Micro SD Slot

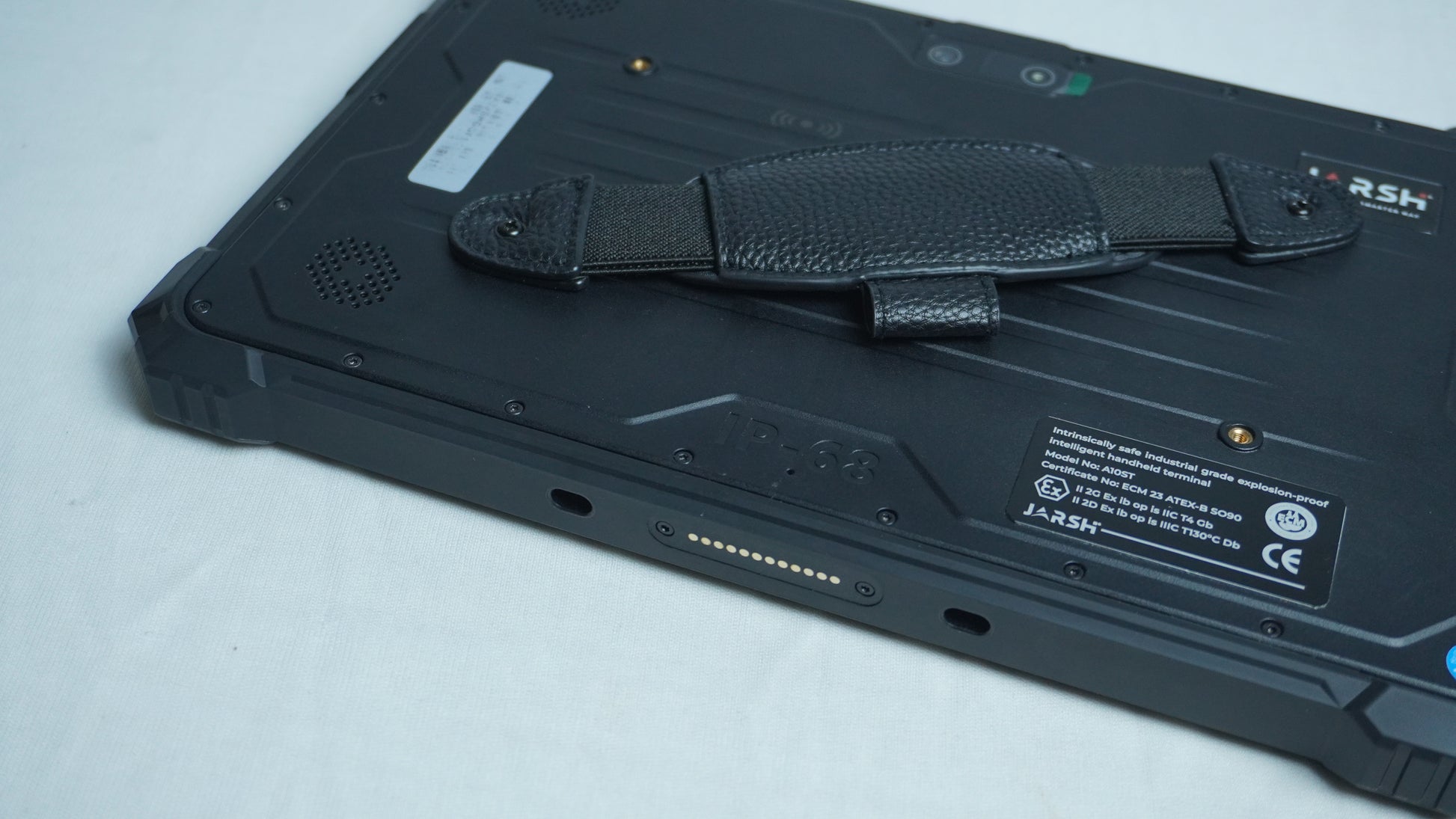

• Accessory Interfaces: Custom Pogo Pin (optimized for optional accessories)

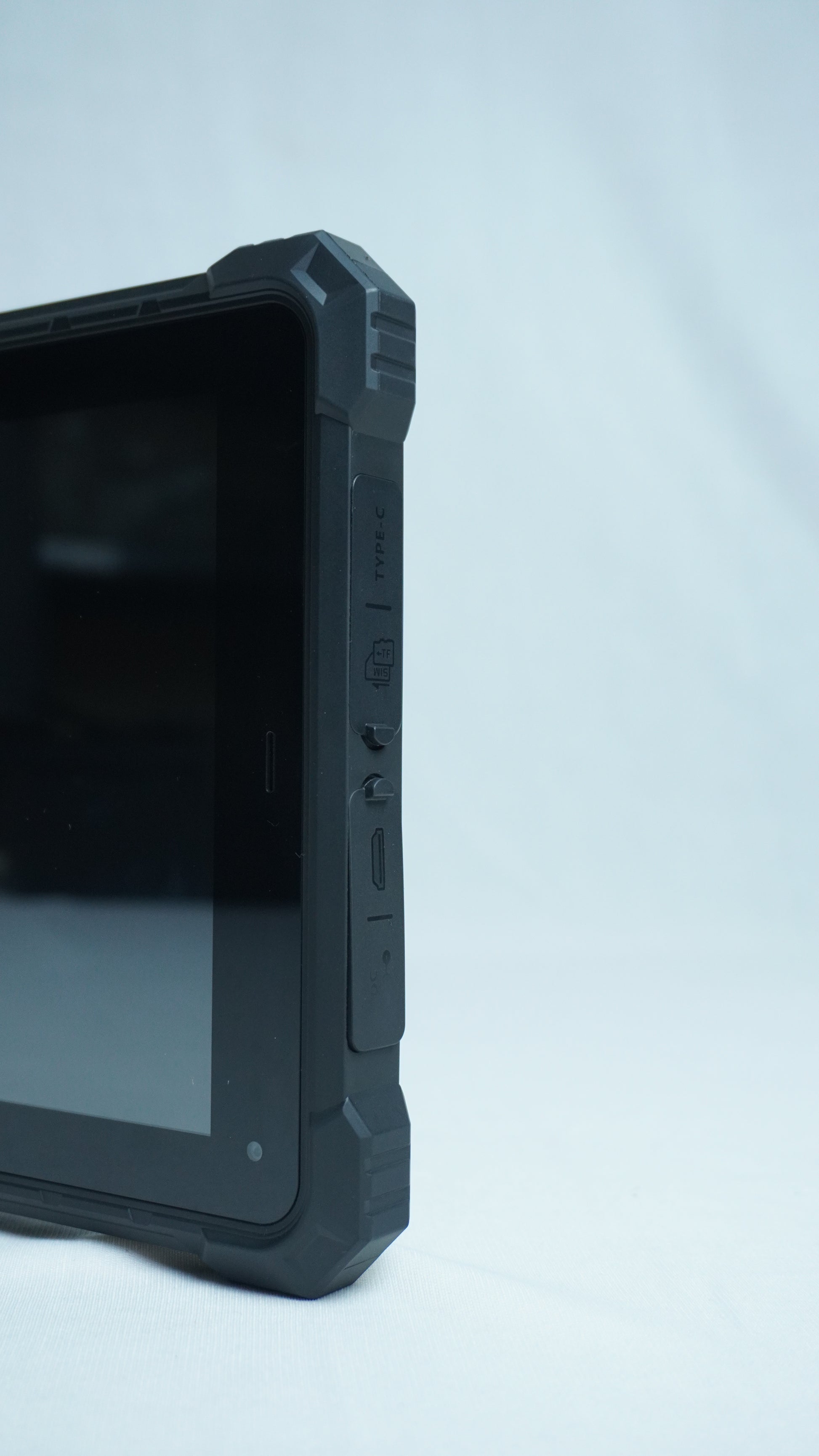

• Physical Interface Safety Keys: Dedicated PTT (Push-to-Talk) & SOS Physical Keys

Integrated Sensor Array

• Accelerometer, Gyroscope, Magnetometer, Proximity Sensor, Ambient Light Sensor

Environmental Tolerance Limits

• Operating Ambient Temperature: -20°C to +60°C

• Storage Temperature Range: -40°C to +70°C

• Atmospheric Relative Humidity: 5% to 95% (non-condensing format)

Applications

The Jarsh JAS Tab 1 explosion-proof tablet provides data protection and safe mobile computing across dangerous B2B workspaces, including:

• Petrochemical Plants & Refining Hubs: Safe digital logging near volatile chemical distillates, gas vapors, and refinery storage systems.

• Underground Mining Sites: Robust asset management and mapping within dark, harsh subterranean mine networks.

• Coal Safety Environments: Secure field tracking in hazardous zone configurations where combustible coal dust or methane gases are present.

• Industrial Marine & Freight Yards: Fleet coordination and cargo logistics in damp locations that demand rugged IP68/IP69K enclosures.

Benefits

• Strict ATEX Compliance Guarantee: Aligns with stringent hazardous area safety protocols to reduce spark risks and optimize insurance compliance audits.

• Minimized Operational Downtime: The IP68/IP69K water-proof housing and shock-absorbent metal-frame construction protect against accidental drop damage.

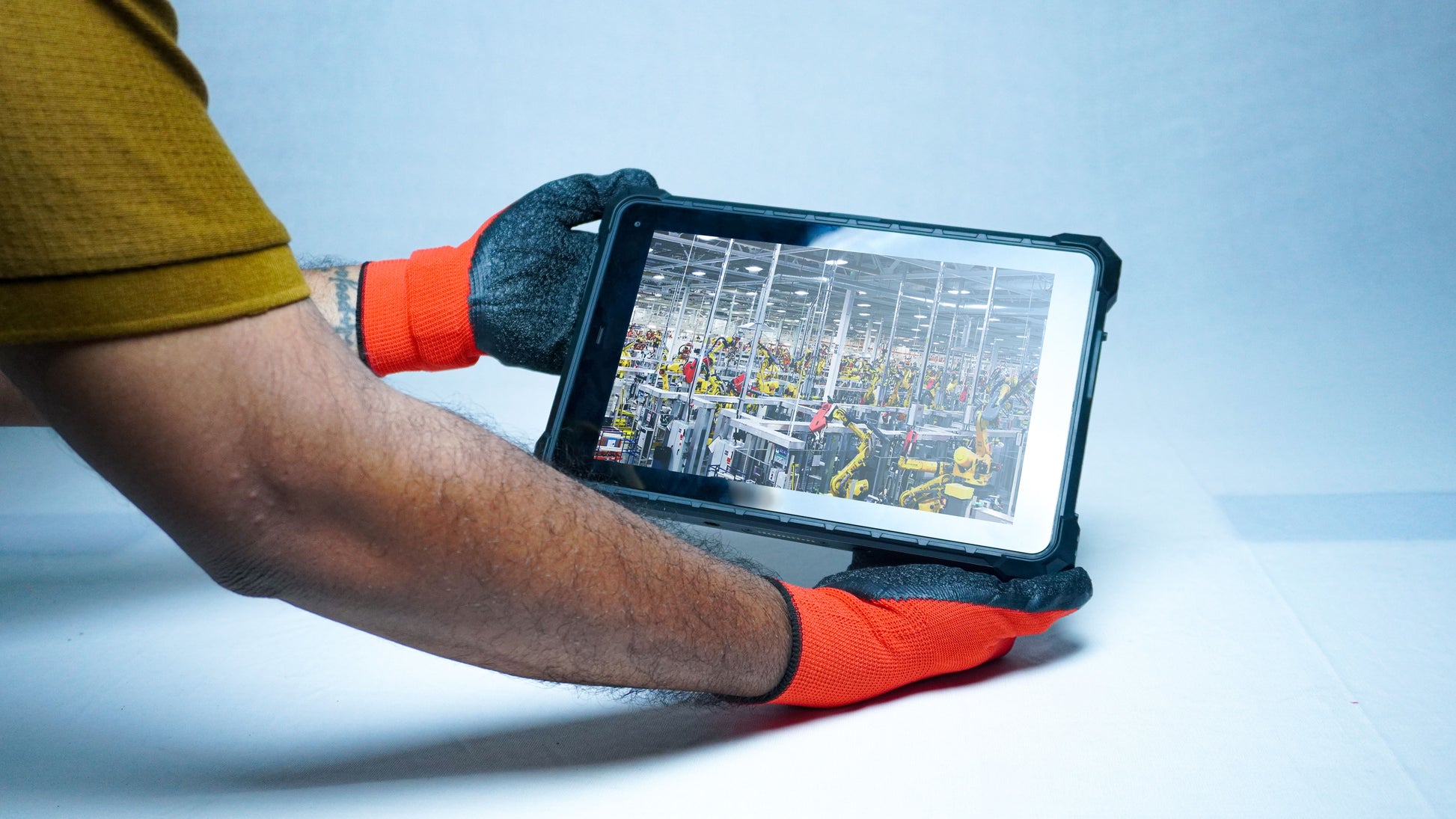

• Flawless Frontline Usability: Field staff can input telemetry data with heavy safety gear on, using the glove and wet touch capacitive screen.

• Rapid Safety Response Tools: Built-in physical SOS and PTT shortcut keys ensure prompt communication during emergency plant procedures.

• Extended Field Autonomy: The massive 10,000mAh battery keeps data tracking and communication running across back-to-back work shifts.
