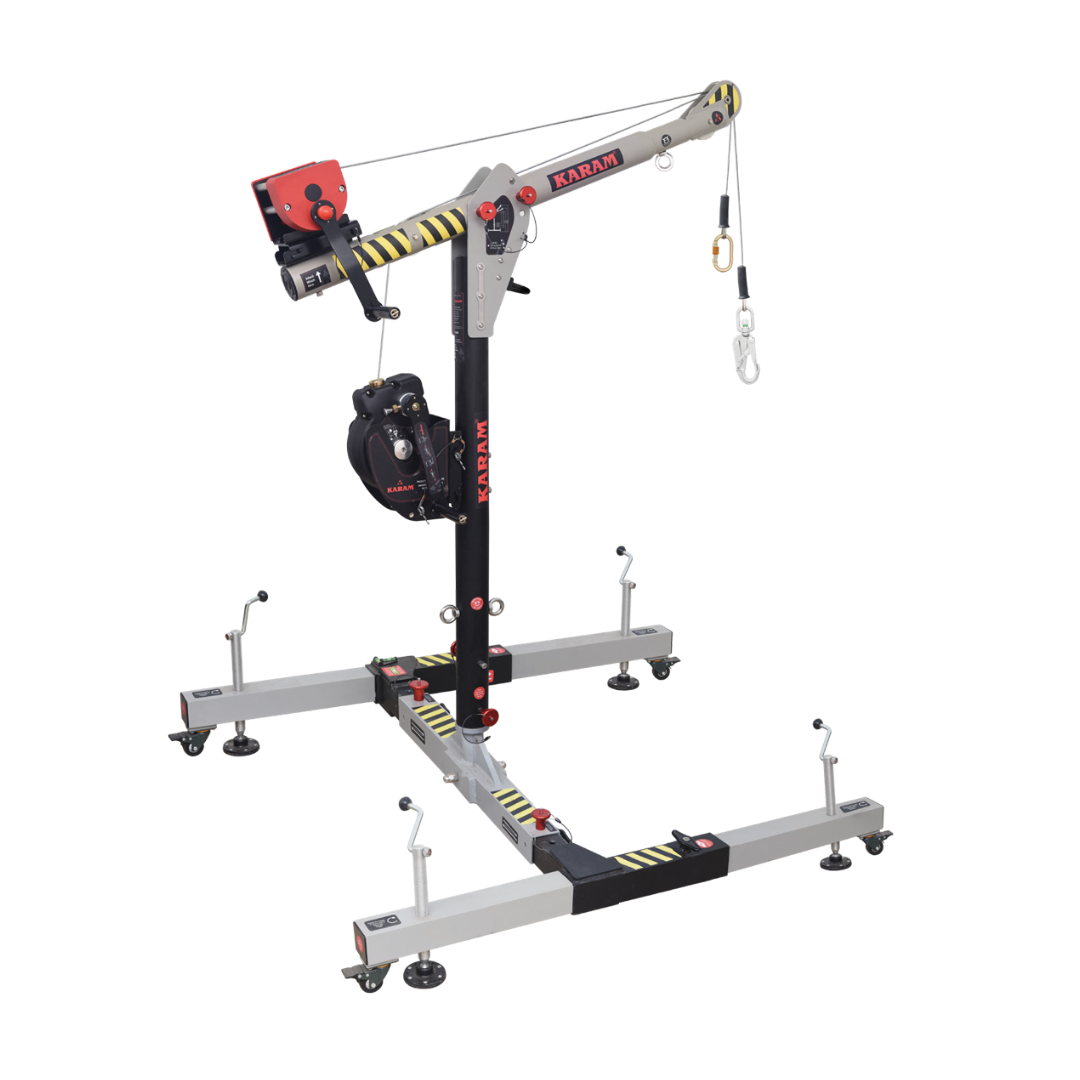

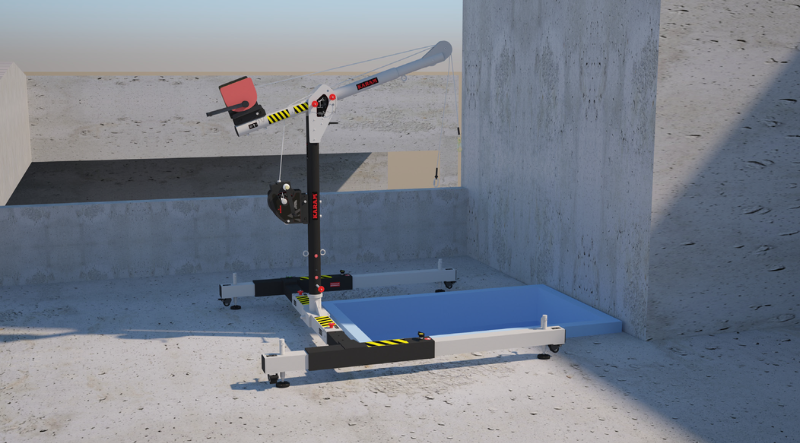

The KARAM H-Base Davit Arm is an advanced, high-performance confined space entry and retrieval system designed to ensure safety, flexibility, and efficiency during operations. Its modular construction allows seamless assembly and adaptability, making it a reliable choice for industrial safety. Here's a breakdown of its components and features:

Key Components and Features

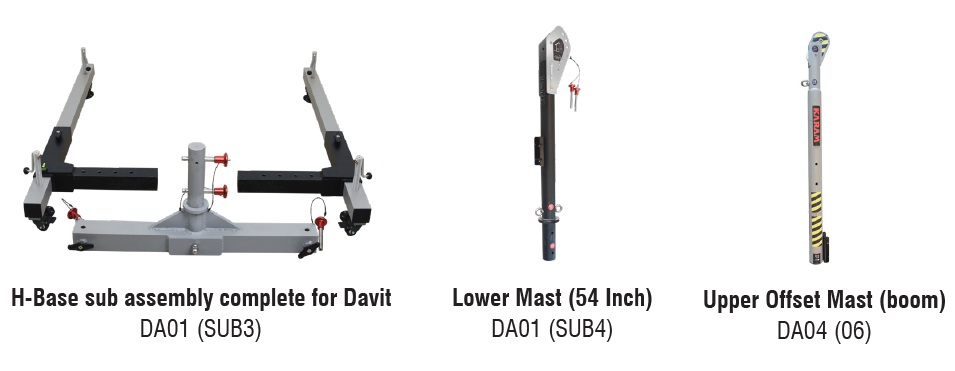

1. H-Base Sub Assembly (Model: DA01SUB3)

   • Robust base assembly engineered for stability during operation.
   • Provides a strong and durable foundation for the entire system.

2. Column Assembly (54 Inch) (Model: DA01SUB4)

   • Tall column structure ensures extended reach and accessibility.
   • Ideal for confined space applications requiring vertical movement.

3. Cantilever Arm Assembly (Model: DA-04(06))

   • Enables horizontal extension for easy access to confined spaces.
   • Designed for efficient load distribution and smooth operation.

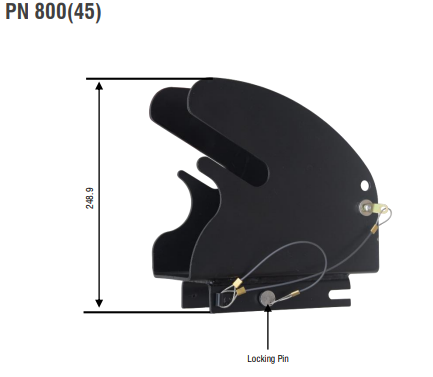

4. Universal Mounting Bracket (Model: PN-800(45))

   • Versatile bracket for securely mounting the retrieval block.
   • Ensures a stable connection and enhances safety during retrieval operations.

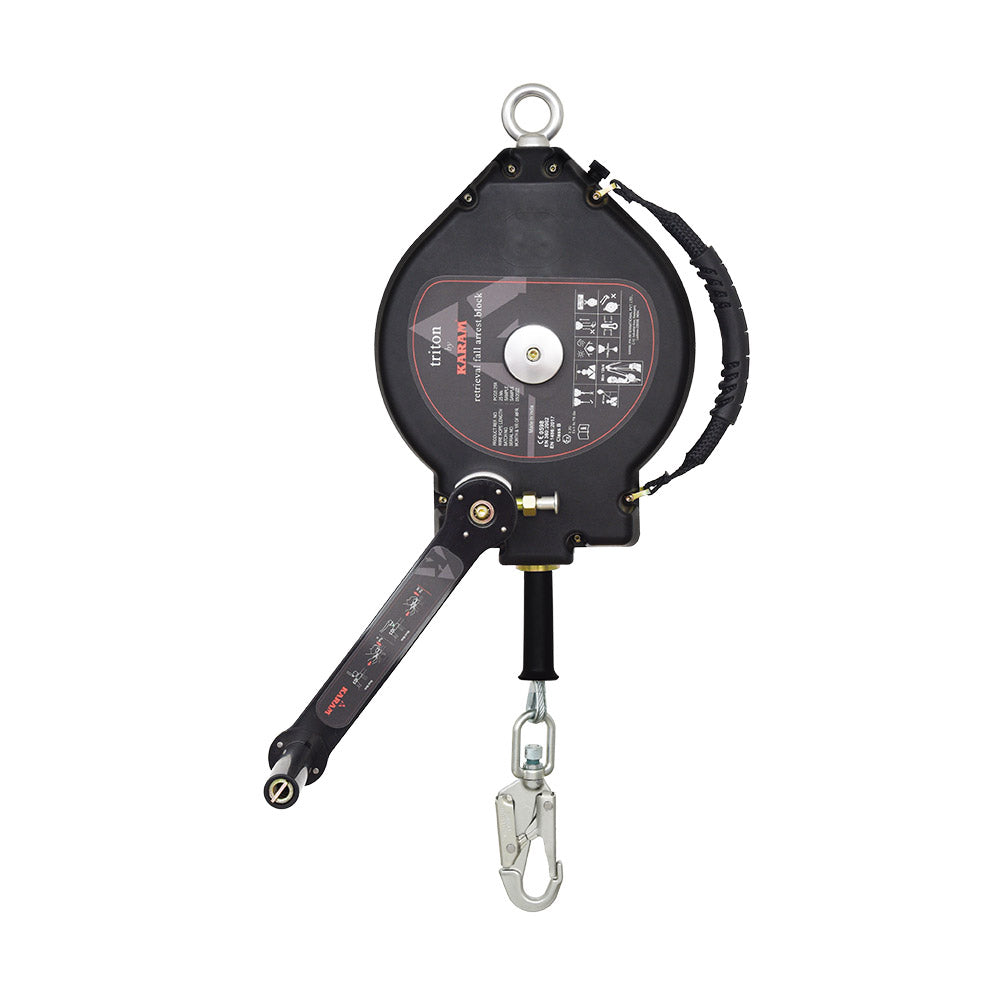

5. Retractable Wire Rope Fall Arrester Block (Model: PCGS30R(PN112))

   • Equipped with a 30-meter galvanized steel cable and plastic casing.
   • Features a retrieval system for quick and safe rescue operations.
   • Includes a PN162 attachment end and PN112 anchorage eye for secure connections.

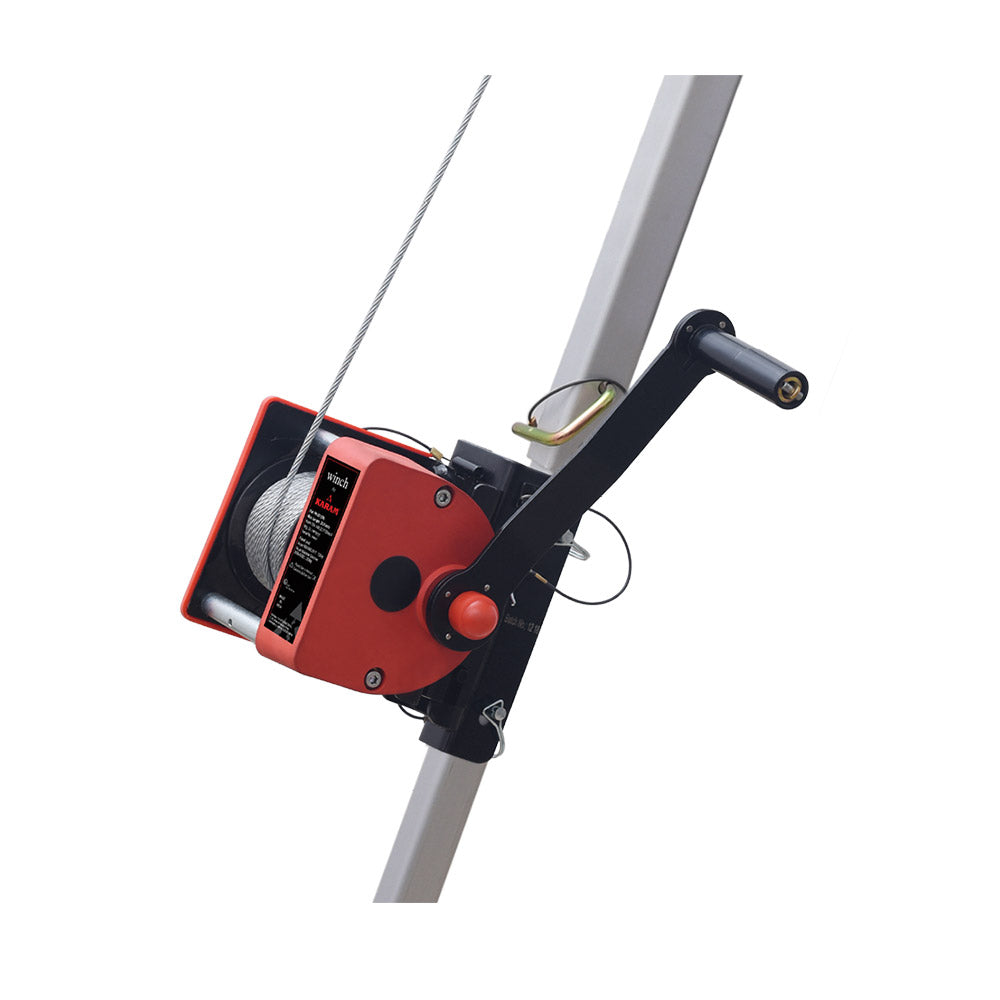

6. Winch with 20 Meter Steel Galvanized Wire Rope (Model: PN801(DP))

   • Heavy-duty winch for precise lifting and lowering.
   • Includes a mounting bracket (PN800(44)) for easy installation and reliable operation.

Applications

• Confined Space Entry
• Rescue and Retrieval Operations
• Industrial Maintenance and Safety

Why Choose the KARAM H-Base Davit Arm?

• Versatility: Modular components adapt to various operational needs.
• Safety: Engineered for maximum security with high-quality materials and design.
• Efficiency: Streamlined assembly and functionality for quick deployment.

Invest in the KARAM H-Base Davit Arm for uncompromised safety and productivity in confined space operations.
