Product Description:

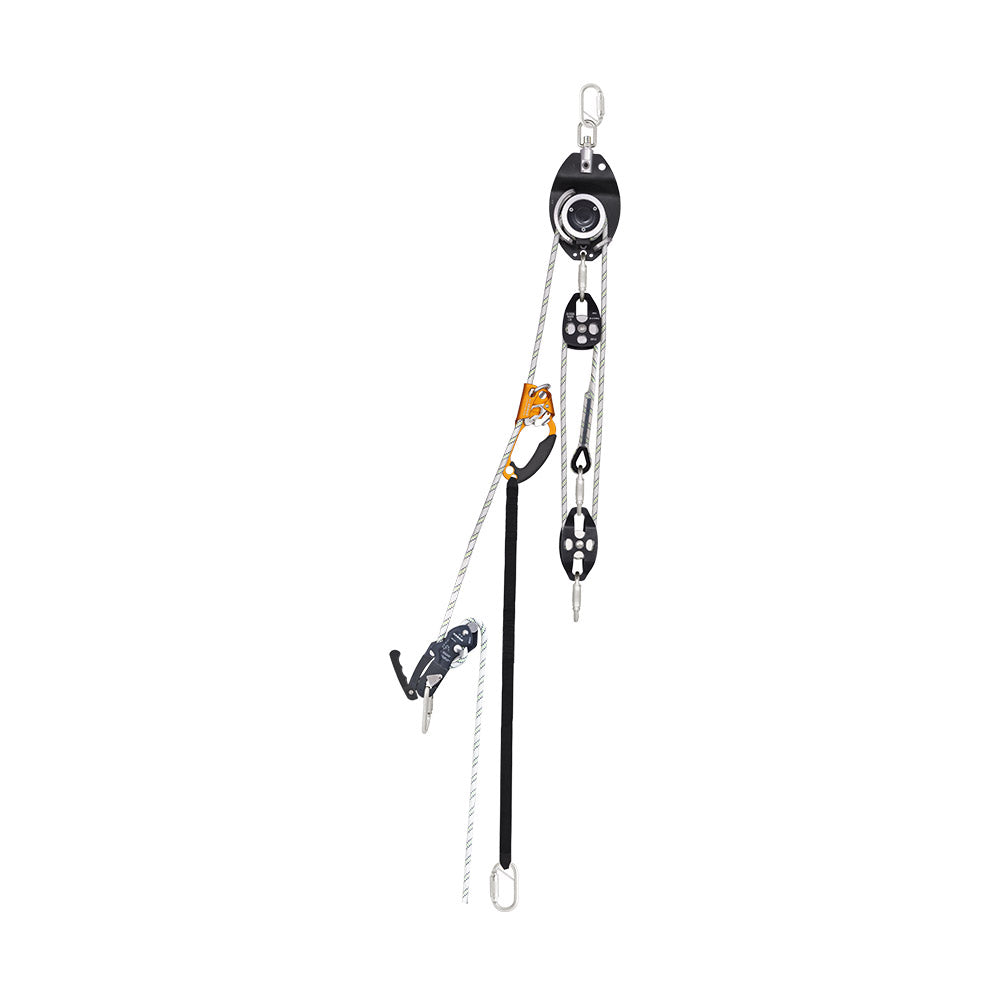

The KARAM PN660 Material Hauling System is a highly efficient and versatile solution designed for transporting materials in industrial settings such as construction sites, warehouses, and manufacturing plants. Made from lightweight, corrosion-resistant aluminium and steel components, this system ensures smooth and controlled transport of goods, reducing manual effort and enhancing productivity. The system is available with a 3:1 or 5:1 hauling ratio, providing optimal lifting and lowering capabilities for mass loads up to 250kg. With easy one-person operation, it improves workflow and simplifies material handling tasks.

Key Features:

• Lightweight and Corrosion-Resistant: Made from durable aluminium and steel, ensuring long-term use in harsh industrial environments.
• Efficient and Easy Operation: The system operates with a 3:1 or 5:1 hauling ratio, making it ideal for lifting or lowering materials with ease. A single operator can handle heavy loads effortlessly.
• Rope Retention Guide: The PN404 unidirectional movement prevents reel-back, keeping the rope securely in place during use and ensuring smooth ascent and controlled descent.
• Safety Features: Includes an ascend rope clamp, cross arm strap, and control device PN410, which prevents accidental descent when released.
• Durable Rope: The system comes with a KARAM kernmantle rope (10.5mm) known for its strength, abrasion resistance, and reliable performance in demanding conditions.
• Maximum Load Capacity: Suitable for handling loads up to 250kg, making it perfect for heavy material lifting in various industries.

Certification:

• EN 362:2004 Class B (Karabiner)
• EN 341 Type 2 Class B (Descender)
• EN 12841 Type C (Descender)
• EN 567:2013 (Rope Clamp)
• EN 795:2012 Type B (Cross Arm Strap)
• EN 1891:1998 (Rope)
• Atex 2014/34/EU (Rope Retention Guide)

Ideal For Use In:

• Construction
• Warehouse Operations
• Manufacturing Plants
• Transportation

Components:

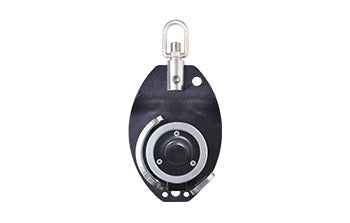

1. Rope Retention Guide (PN404):

   • Certification: Atex 2014/34/EU
   • Keeps the rope in place during use, ensuring the system operates smoothly and preventing reel-back.

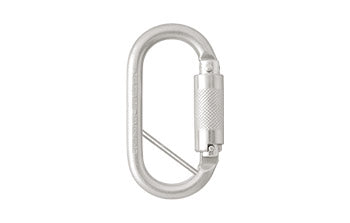

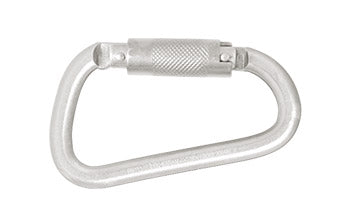

2. Karabiner (PN111(C) & PN113):

   • Certification: EN 362:2004 Class B
   • High-strength locking karabiners for securing ropes and other components.

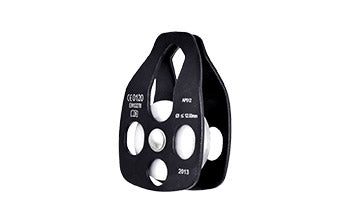

3. Aluminium Single Pulley Single Side Attachment (AP012):

   • Certification: EN 12278:2007
   • A single side pulley attachment used for efficient movement of the rope in the hauling system.

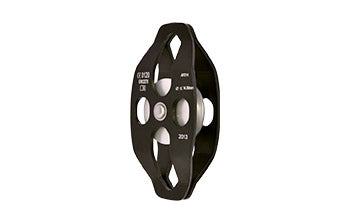

4. Aluminium Single Pulley Double Side Attachment (AP014):

   • Certification: EN 12278:2007
   • Designed for more demanding tasks, allowing for smoother load transport.

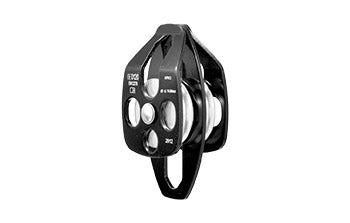

5. Aluminium Double Pulley Single Side Attachment (AP013) for 5:1 ratio:

   • Certification: EN 12278:2007
   • Used for a higher hauling ratio, enabling efficient lifting of heavier loads.

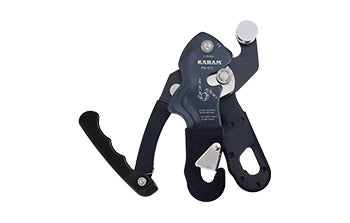

6. Descender (PN410):

   • Certification: EN 341 Type 2 Class B, EN 12841 Type C
   • Used to control descent, preventing uncontrolled lowering of materials.

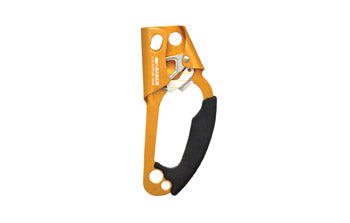

7. Rope Clamp (PN402(R)SL):

   • Certification: EN 567:2013
   • Provides secure control over the rope, preventing unwanted movement during operation.

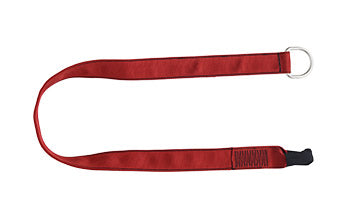

8. Cross Arm Strap (PN803):

   • Certification: EN 795:2012 Type B
   • A safety feature designed to keep the system secure, particularly during ascent or descent.

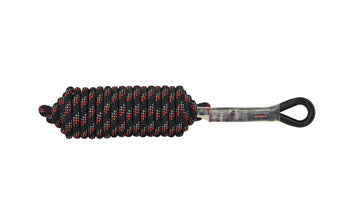

9. Kernmantle Rope (10.5mm):

   • Certification: EN 1891:1998
   • Strong, durable rope designed for heavy-duty lifting and material hauling.

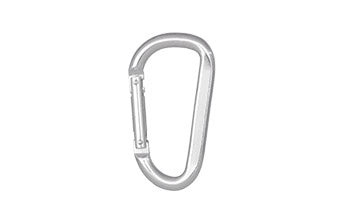

10. Aluminium Snap Hook (D Type):

    • Used to securely attach components within the system.

Why Choose the KARAM PN660 Material Hauling System?

• Durable and Reliable: Made from high-quality aluminium and steel, ensuring long-term performance in demanding environments.
• Safe and Easy to Operate: With advanced safety features and a straightforward setup, one person can operate the system with minimal effort.
• Perfect for Heavy Loads: Handles up to 250kg, making it suitable for a wide range of industrial applications.
• Optimized for Industrial Use: Ideal for construction, warehouses, and manufacturing environments where material handling efficiency is key.

The KARAM PN660 Material Hauling System is your go-to solution for lifting and transporting heavy materials across various industries. With easy one-person operation, advanced safety features, and high load capacity, this system improves workflow and ensures safe, efficient material handling.
