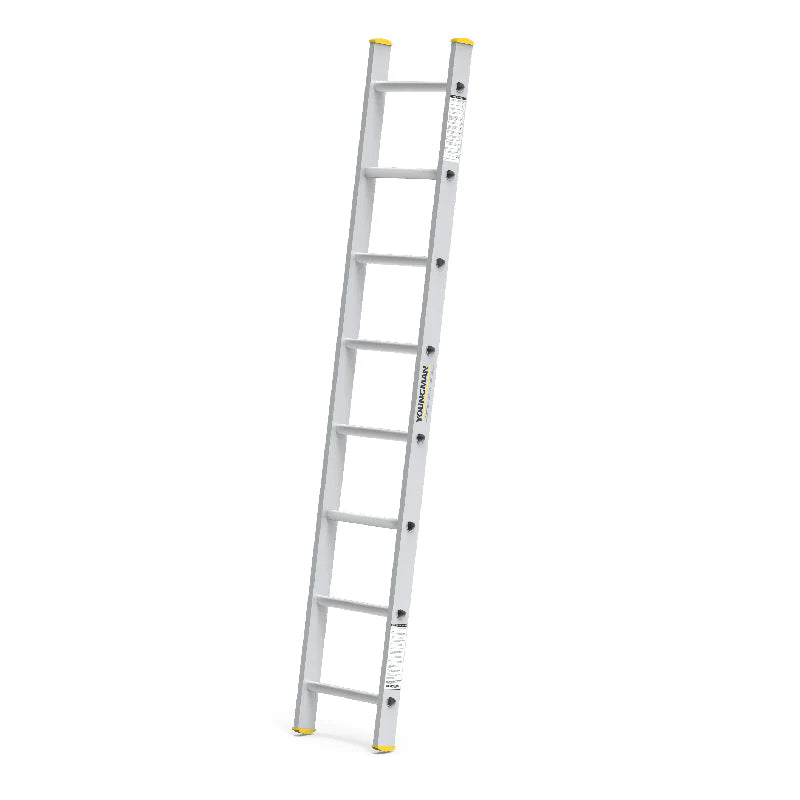

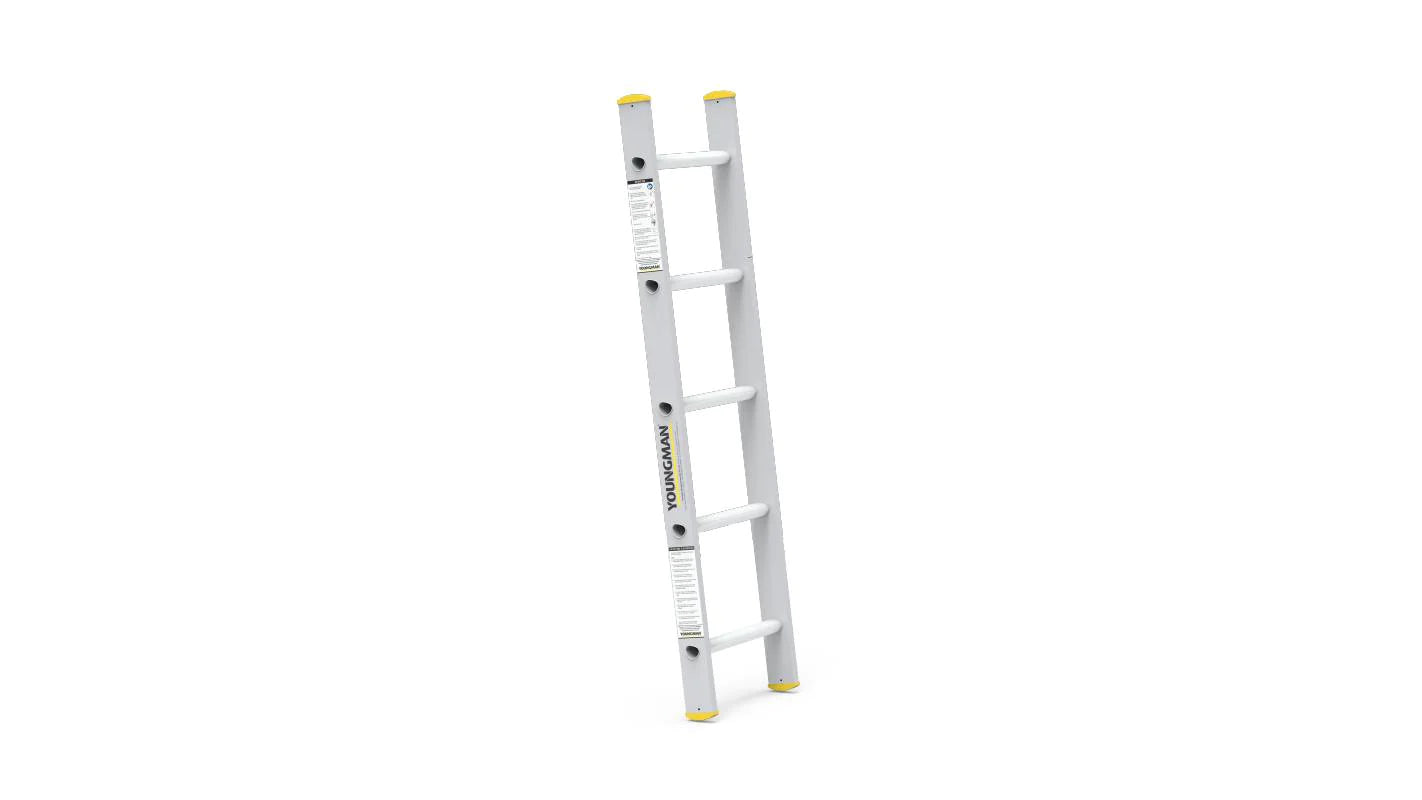

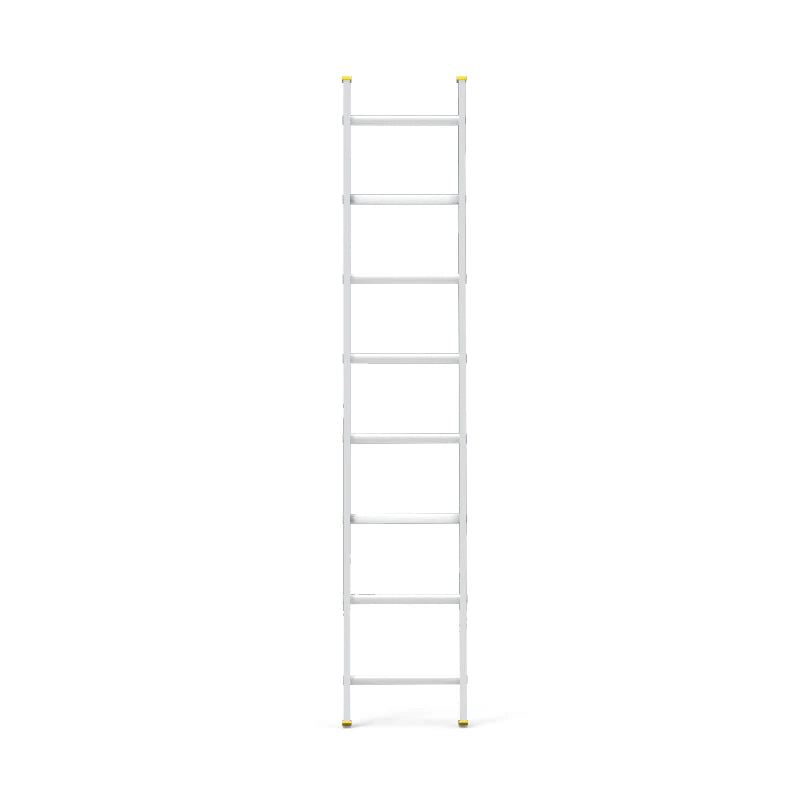

Youngman Aluminum Wall Support Straight Ladder
Youngman Aluminum Wall Support Straight Ladder
Regular price
Rs. 5,500.00 INR
Regular price
Sale price
Rs. 5,500.00 INR
Unit price
/
per
Shipping calculated at checkout.
GST additional
Share
Couldn't load pickup availability
Contact Us for a quotation, Some items are made to order.!
Aluminum Wall Support Ladder is a non-self-supporting portable ladder that consists of two stiles and several rungs. Single or Straight Ladders can be manufactured using different materials, the rungs can be riveted, swaged, or glued and they come in various ranges.
SPECIFICATIONS:
- Heavy Duty with High-Grade Aluminum
- Slip Resistant D Rungs Step
- Rung Distance 280mm
- Box Section with Size 60X25X2.5 mm
- Both side High-Grade Rubber Shoe
FEATURES:
- High strength quality crimpled connection between rungs and slits
- Rungs and Slits are extruded from High-grade Aluminum sections
- Anti-skid D Rungs with a pitch of 280mm step difference
- Standard Ladder outside width 420mm. Low height option is also available with 350mm outside width.
- Light-weight and extremely stable
- Anti skip pads made of high-quality rubber at the end of ladders to ensure safety and stability.
| Product Name | Height of Ladder (Closed) mm | Maximum Standing Height (mm) | Weight of Ladder (mm) | Open Length (mm) | Width of ladder (mm) | Safe working height (mm) | Step Size mm | Box/C section dimensions (mm) | Step distance (mm) |
| ALUMINUM WALL SUPPORT 04 STEP | 1200 | 724.5 | 3.84 | 1200 | 350 | 1859.067 | D Rung-40x35 | RHS-60x25,64x25x74x25 | 300 |
| ALUMINUM WALL SUPPORT 05 STEP | 1500 | 1014.3 | 4.8 | 1500 | 350 | 2139.0138 | D Rung-40x35 | RHS-60x25,64x25x74x25 | 300 |
| ALUMINUM WALL SUPPORT 06 STEP | 1800 | 1014.3 | 5.76 | 1800 | 350 | 2139.0138 | D Rung-40x35 | RHS-60x25,64x25x74x25 | 300 |
| ALUMINUM WALL SUPPORT 07 STEP | 2100 | 1304.1 | 6.72 | 2100 | 350 | 2418.9606 | D Rung-40x35 | RHS-60x25,64x25x74x25 | 300 |
| ALUMINUM WALL SUPPORT 08 STEP | 2400 | 1304.1 | 7.68 | 2400 | 350 | 2418.9606 | D Rung-40x35 | RHS-64x25x74x25 | 300 |
| ALUMINUM WALL SUPPORT 09 STEP | 2700 | 1593.9 | 8.64 | 2700 | 350 | 2698.9074 | D Rung-40x35 | RHS-64x25x74x25 | 300 |
| ALUMINUM WALL SUPPORT 10 STEP | 3000 | 1883.7 | 9.6 | 3000 | 350 | 2978.8542 | D Rung-40x35 | RHS-74x25 | 300 |
| ALUMINUM WALL SUPPORT 11 STEP | 3300 | 2173.5 | 10.56 | 3300 | 350 | 3258.801 | D Rung-40x35 | RHS-74x25 | 300 |
| ALUMINUM WALL SUPPORT 12 STEP | 3600 | 2463.3 | 11.52 | 3600 | 350 | 3538.7478 | D Rung-40x35 | RHS-74x25 | 300 |
| ALUMINUM WALL SUPPORT 13 STEP | 3900 | 2753.1 | 12.48 | 3900 | 350 | 3818.6946 | D Rung-40x35 | RHS-74x25 | 300 |
| ALUMINUM WALL SUPPORT 14 STEP | 4200 | 3042.9 | 13.44 | 4200 | 350 | 4098.6414 | D Rung-40x35 | RHS-74x25 | 300 |
| ALUMINUM WALL SUPPORT 15 STEP | 4500 | 3042.9 | 14.4 | 4500 | 350 | 4098.6414 | D Rung-40x35 | RHS-74x25 | 300 |
| ALUMINUM WALL SUPPORT 16 STEP | 4800 | 3332.7 | 15.36 | 4800 | 350 | 4378.5882 | D Rung-40x35 | RHS-74x25 | 300 |
| ALUMINUM WALL SUPPORT 17 STEP | 5100 | 3622.5 | 16.32 | 5100 | 350 | 4658.535 | D Rung-40x35 | RHS-74x25 | 300 |
| ALUMINUM WALL SUPPORT 18 STEP | 5400 | 3912.3 | 17.28 | 5400 | 350 | 4938.4818 | D Rung-40x35 | RHS-74x25 | 300 |
| ALUMINUM WALL SUPPORT 20 STEP | 6000 | 4491.9 | 19.2 | 6000 | 350 | 5498.3754 | D Rung-40x35 | RHS-74x25 |
